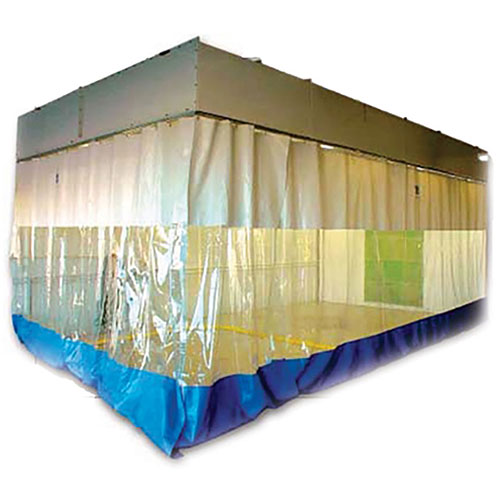

- Very versatile, great for painting, sanding, prep work etc.
- 18 gauge galvanized Steel Panels
- Inside dimensions: 14' W x 10' H x 24' L (actual installed height is required to order Goff Curtain walls)
- Outside dimensions: 14' 4" W x 12' 2" H x 26' 6" L
- Includes 8 - four-tube open type light fixtures mounted in roof panel
- Intake is powered by one (1) 18" diameter tubeaxial fan with a 1.5 hp, three phase motor
- Exhaust is powered by one (1) 18" diameter tubeaxial fan with a 1.5 hp, three phase motor
- Goff Curtain Walls with mounting included for closing off painting area
- Eight (8) four tube, 48" long, 32-watt, LED light fixtures. (bulbs not included)
- Panels, assembly hardware, filters and sealants needed for installation are included
- Threaded rod for suspending the intake plenum is not supplied
- 8705 - 2 sided model - includes front & side curtains. Uses your existing shop walls for back & side
- 8713 - 3 sided model - included front & 2 side curtains. Uses your existing shop wall for a back wall
- Prep Station complies with NFPA 33 regulations
Click here for more information on Paint Booths
Ships by truck freight. You will be contacted with final shipping charges.
Forklift required at time of delivery.
Call Toll Free to speak to a Paint Booth Specialist: 800-431-2323
E-Mail: sales@usautosupply.com
• Great for painting, sanding, prep work etc.
• Inside dimensions: 14' W x 10' H x 24' L
• Goff Curtain Walls with mounting included for closing off painting area
• Inside dimensions: 14' W x 10' H x 24' L
• Goff Curtain Walls with mounting included for closing off painting area
